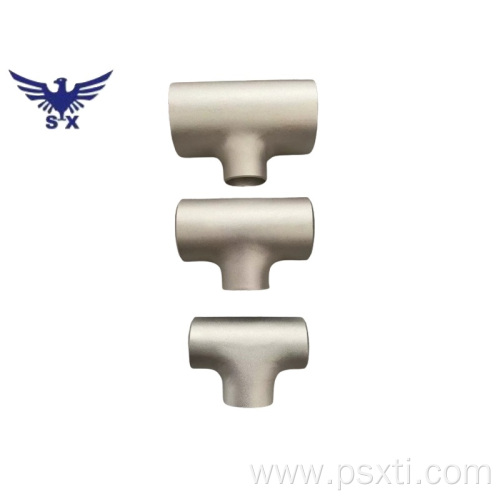

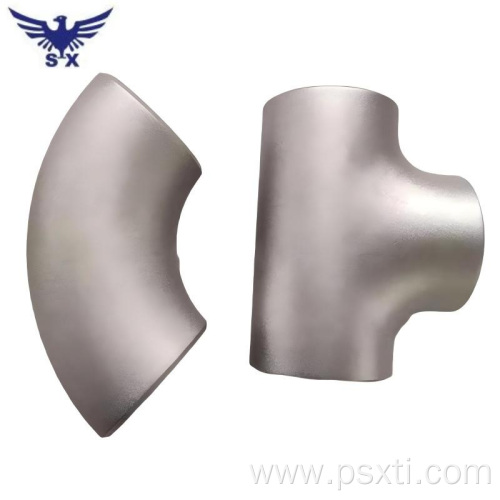

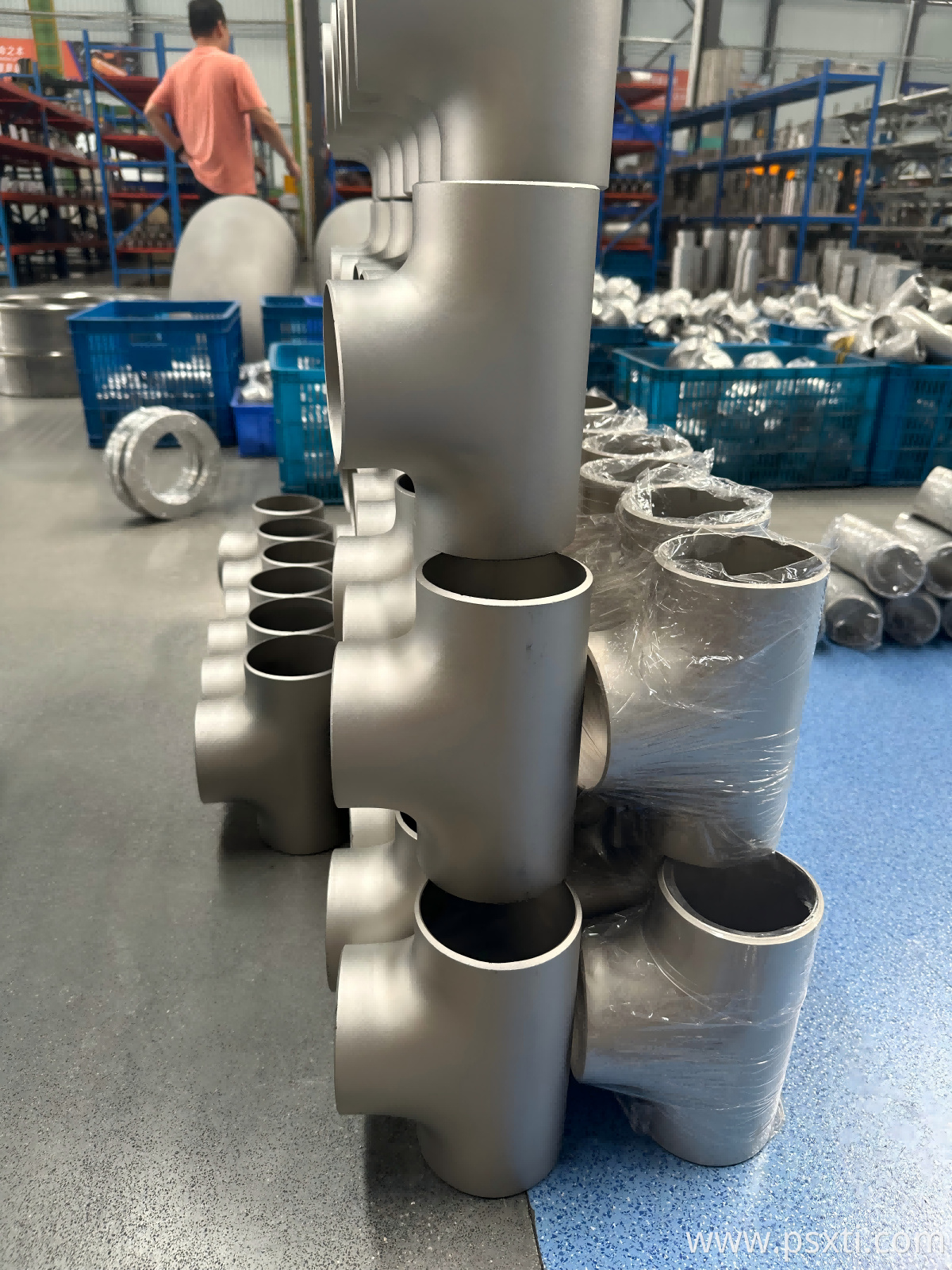

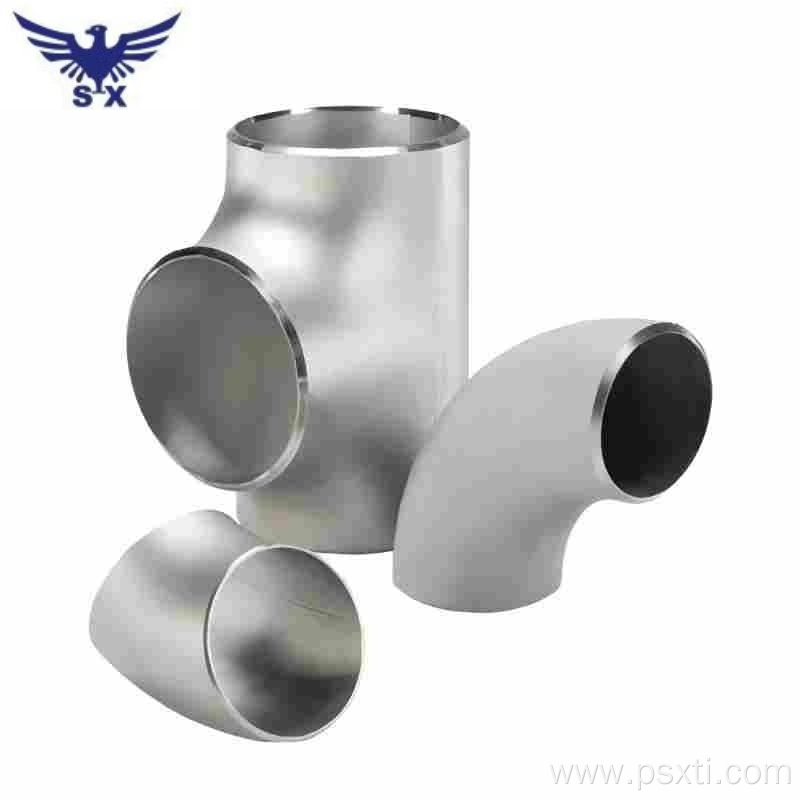

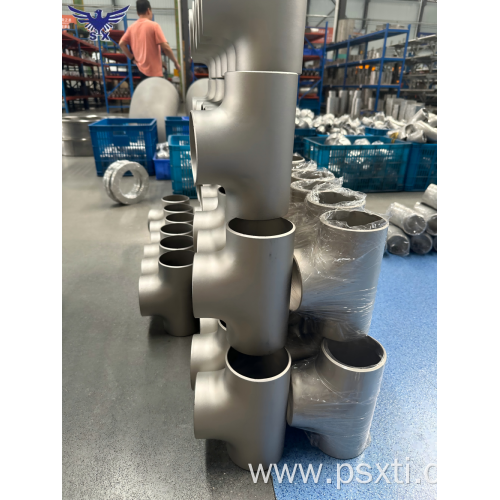

What Is Grade 5 Titanium Elbow Tee？
Grade 5 (TA15/TC4) Titanium Alloy elbows and tees are core components for high strength, corrosion resistant industrial piping systems, and are currently the Titanium Pipe fitting with the best overall performance in chemical, offshore, desulfurization, and new energy applications. Unlike ordinary pure Titanium Pipe Fittings, Grade 5 titanium alloy are alloyed with aluminum and vanadium, resulting in comprehensive upgrades in strength, pressure resistance, high temperature resistance, and fatigue resistance. They are suitable for continuous production under high-pressure, high temperature, and highly corrosive conditions, completely resolving the issues of pitting corrosion, leakage, and aging cracks associated with stainless steel and carbon steel pipe fittings.
Our PSX Baoji Pengshengxin source factory employs an integrated manufacturing process combining forging, extrusion, and five-axis Titanium CNC Machining. The resulting products are free of sand holes, porosity, and deformation, with precisely turned, flat end faces and high sealing accuracy. We support American, German, and Chinese standards as well as custom non standard designs, and our products are widely exported to industrial projects in Europe, the United States, and Southeast Asia.
Key Advantages
1. Ultra-High Mechanical Strength
Grade 5 titanium alloy is more than twice as strong as pure titanium. It features high tensile strength, impact resistance, and fatigue resistance, enabling it to withstand impact loads in high pressure pipelines over the long term. It is suitable for high-pressure chemical processing and deep-sea seawater applications.
2. Exceptional Resistance to Severe Corrosion
Resistant to seawater, chloride ions, moist chlorine gas, acidic and alkaline slurries, and salt chemical media; **does not rust, pitting corrode, or suffer from crevice corrosion**, making it a perfect replacement for standard 316L, 2205, and Hastelloy pipe fittings.
3. High Temperature Resistance and Oxidation Resistance
It can operate stably for extended periods in high-temperature media ranging from 300–400°C without softening or oxidizing and peeling at high temperatures, making it suitable for high-temperature desulfurization and the transportation of high-temperature chemical fluids.
4. Lightweight and Load Reducing
With a density of only 4.51 g/cm³—40% lighter than steel—it significantly reduces the load on pipe racks and the overall equipment load, making it ideal for lightweight designs in ships and offshore platforms.
5. Stable Welding Performance
The Titanium Material is homogeneous and stable, suitable for TIG (argon arc) welding and butt welding processes. It offers excellent weld fusion and is resistant to brittle cracking, resulting in an extremely high on-site installation pass rate.
Applications
- Seawater Utilization and Marine Engineering: Main and auxiliary pipelines for seawater desalination plants, seawater cooling circulation pipelines, process pipelines for offshore oil and gas platforms, ship ballast water systems, bends and branch joints in subsea pipelines, corrosion-resistant circulation water pipelines for coastal power plants, and fluid pipelines for deep-sea exploration equipment.
- Power Generation and Environmental Protection—Desulfurization and Denitrification Industries: Wet flue gas desulfurization (FGD) slurry pipelines in coal-fired power plants; ammonia water transport pipelines for denitrification; boiler flue gas scrubbing systems; circulation pipelines for acid and alkali scrubbing towers in industrial exhaust gas treatment; and corrosive flue gas treatment systems in waste-to-energy plants.
- Chlor-Alkali, Salt, and Fine Chemicals: Piping for wet chlorine gas, brine, hydrochloric acid, sulfuric acid, hydrofluoric acid, and various acid and alkali slurries; reactor inlet and outlet lines, distillation column branch lines, and chemical waste liquid treatment piping systems—eliminating the risk of chloride ion pitting and leakage.
- Oil and Gas Industry: Acidic oil and gas gathering and transportation pipelines on offshore platforms; process pipelines carrying hydrogen sulfide, carbon dioxide, and high-salinity media; corrosion-resistant pipelines for oilfield water injection; and pipelines for transporting corrosive media in refineries—suitable for dual operating conditions of high pressure and severe corrosion.
- New Energy Hydrometallurgy and Lithium Battery Industries: Circulation piping for lithium, cobalt, and nickel hydrometallurgical leachates, extraction solutions, and corrosive electrolytes; corrosion-resistant fluid transport systems for energy storage battery production lines.
- Electroplating and Surface Treatment Industry: Cooling and heating circulation lines for electroplating tanks, and chemical transport pipelines for pickling tanks; these pipes do not leach heavy metal ions that could contaminate tank solutions, ensuring consistent plating quality.
- Paper and Light Industry: Pipelines for chlorine-containing chemicals in the bleaching process, as well as black liquor and acidic waste liquid transport lines; these solutions address the challenges of chloride ion corrosion in paper mills.
- Aerospace and Defense Equipment: Aircraft fuel lines, hydraulic lines, and aircraft air conditioning fluid lines; high-pressure corrosion-resistant piping for ships and submarines, balancing lightweight design with high-pressure load-bearing capacity.
- Pharmaceutical, Food, and Beverage Industries: High-purity corrosive chemical transport pipelines and acid/alkali feeding lines for fermentation systems; hygienic and leach-free, meeting clean production requirements.
- Non-ferrous Metallurgy: Slurry pipelines for wet processing of copper, zinc, and nickel; transport systems for acidic leaching solutions and waste liquids.
- Heat Pumps and Seawater-Source Heat Exchange Systems: Circulation pipelines for seawater heat source pumps; inlet and outlet elbows and tee-shaped branch components for chemical heat exchangers.
