As a professional titanium product manufacturer, our titanium lined flange is engineered to combine the high strength of carbon steel/stainless steel with the excellent corrosion resistance of titanium. It is widely recognized as the ideal piping connection component for harsh industrial environments, solving the pain points of high cost of pure titanium flanges and poor corrosion resistance of ordinary flanges. Suitable for bulk industrial procurement, we support custom processing to meet your project-specific requirements.
Product Overview: What is Titanium Lined Flange?

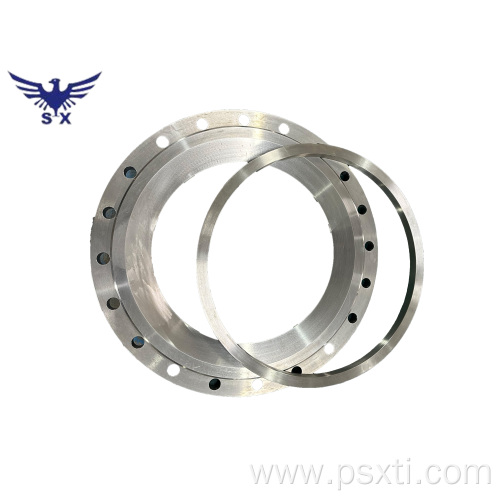

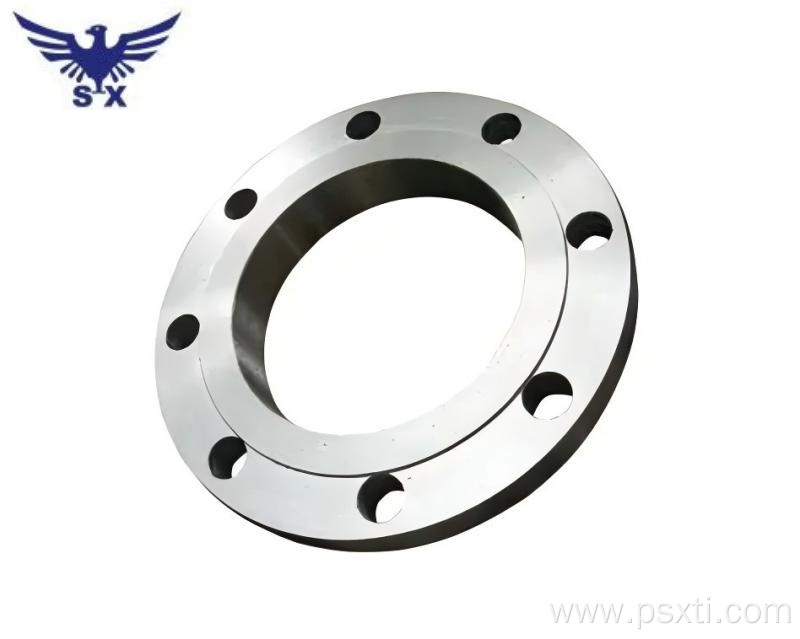

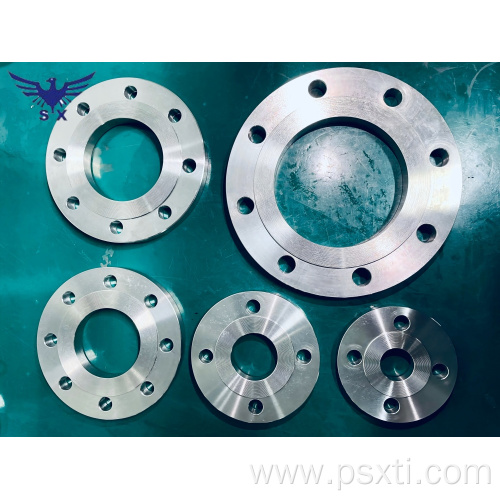

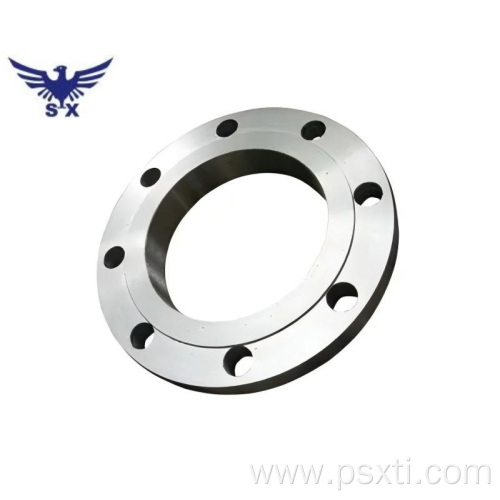

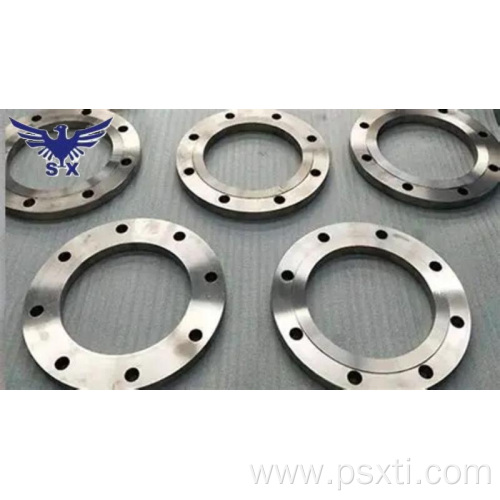

Titanium lined flange, also known as titanium clad flange, is a composite flange composed of an outer base material and an inner titanium lining. The outer base adopts carbon steel (Q235, Q345) or stainless steel (304, 316L) to ensure the overall structural strength and bearing capacity of the flange; the inner lining uses high-quality titanium (TA2 pure titanium, TC4 Ti-6Al-4V Titanium Alloy) with a thickness of 1.6-3mm, which provides excellent corrosion resistance and extends the service life of the flange in corrosive media. Compared with pure titanium flanges, our titanium lined flange has obvious cost advantages while maintaining the core anti-corrosion performance; compared with ordinary carbon steel/stainless steel flanges, it can withstand the erosion of strong acids, alkalis, salts and other corrosive media, reducing maintenance costs and equipment failure risks for your enterprise.
Core Advantages of Our Titanium Lined Flange
- Excellent Corrosion Resistance: The inner titanium lining (TA2/TC4) has strong resistance to corrosion by various corrosive media such as sulfuric acid, hydrochloric acid, nitric acid, seawater and chemical reagents, and can maintain stable performance in harsh working environments for a long time.
- High Structural Strength: The outer base is made of high-quality carbon steel or stainless steel, which has strong bearing capacity and pressure resistance, ensuring the stability and safety of the flange during installation and use, and adapting to high-pressure industrial piping systems.
- Cost-Effective Solution: It avoids the high cost of pure titanium flanges, and at the same time makes up for the defect of poor corrosion resistance of ordinary flanges, realizing the perfect balance of performance and cost, which is more suitable for large-scale industrial application and bulk procurement.
- Precision Processing & Strict Standards: Adopting advanced forging, rolling and lining technology, the titanium lining is closely combined with the base material, no delamination, uniform thickness, smooth inner wall. All products comply with ASTM, GB, ISO international standards, with accurate size tolerance and stable product quality.
- Customizable & Versatile: Support custom processing according to customer drawings and requirements, including flange size, pressure grade, flange face type (RF raised face, FF flat face, RTJ ring joint face), titanium lining thickness and base material. It can be perfectly matched with various industrial piping systems.
Application Fields
Our titanium lined flange is widely used in various industrial fields that require corrosion resistance and high strength, especially suitable for harsh working environments with corrosive media. The main application fields include:
- Chemical Industry: Piping systems for chemical reactors, storage tanks, conveying pipelines of corrosive chemicals (sulfuric acid, hydrochloric acid, nitric acid, etc.), ensuring safe and stable operation of equipment.
- Marine Engineering: Coastal and offshore engineering, seawater desalination equipment, marine pipeline connections, resisting seawater corrosion and extending the service life of marine equipment.
- Pharmaceutical Industry: Piping and equipment connections in pharmaceutical production, meeting the requirements of high cleanliness and corrosion resistance, ensuring the purity of pharmaceutical products.
- Petrochemical Industry: Oil refining, petrochemical processing, pipeline connections in offshore oil exploitation, resisting the corrosion of crude oil, natural gas and chemical additives.
- Environmental Protection Industry: Wastewater treatment, flue gas desulfurization and denitrification equipment, pipeline connections, adapting to the corrosion of sewage and harmful gases.
- Other Fields: Aerospace, metallurgy, electric power and other industries that require high-performance flange connections.
Our Processing Advantages & Quality Control
Advanced Processing Technology
We adopt advanced composite processing technology for titanium lined flange, including hot rolling composite, explosion composite and pressure composite. The titanium lining and the outer base material are closely combined, with high bonding strength, no delamination, gap and other defects, ensuring the overall performance of the flange. The inner titanium lining is polished, with smooth surface, no burr, which can reduce the resistance of medium conveying and avoid the accumulation of medium.
Strict Quality Control System
From the selection of raw materials to the final delivery of products, we implement strict quality control at every link:
- Raw Material Inspection: Strictly inspect the Titanium Material (TA2/TC4) and base material (carbon steel/stainless steel), and provide corresponding material test reports (MTR) to ensure that the raw materials meet international standards.
- Processing Inspection: Monitor the processing process in real time, inspect the lining thickness, size tolerance, bonding degree and other indicators to ensure that the processing quality meets the requirements.
- Final Inspection: Conduct pressure test, corrosion test and appearance inspection on the finished products, and only deliver the products that pass all the inspections.
Service & Support
- Custom Processing: Support custom processing according to your drawings, specifications, pressure grade and other requirements, and provide professional technical advice to help you select the most suitable product scheme.
- Bulk Supply: We have sufficient inventory and advanced production capacity, which can meet your bulk procurement needs, with favorable bulk price and fast delivery cycle.
- Quality Assurance: All products provide quality assurance, and if there is any quality problem within the warranty period, we will provide corresponding after-sales service in a timely manner.
- Technical Support: Provide professional technical guidance on product installation, use and maintenance to help you solve various problems encountered in the use process.
- Fast Response: Our sales team will respond to your inquiry, quotation and other needs in a timely manner, providing efficient and thoughtful service.
FAQ
Q1: What is the difference between titanium lined flange and pure Titanium Flange?
A1: The titanium lined flange is a composite structure of outer base material (carbon steel/stainless steel) and inner titanium lining, which has the advantages of high strength of base material and corrosion resistance of titanium, and the cost is much lower than that of pure titanium flange. The pure titanium flange is made of full titanium material, which has excellent corrosion resistance but high cost, and is suitable for occasions with extremely high corrosion resistance requirements and low pressure.
Q2: Can the titanium lining thickness be customized?
A2: Yes, we support customizing the titanium lining thickness according to your needs, usually 1.6-3mm, and we can also adjust it according to the corrosiveness of the medium and the working pressure.
Q3: Do you provide material test reports (MTR) for titanium lined flange?
A3: Yes, all our products provide corresponding material test reports (MTR), which clearly record the performance indicators of raw materials and finished products, ensuring that the products meet ASTM, GB, ISO and other international standards.
Q4: What is the delivery cycle for bulk orders?
A4: The delivery cycle depends on the order quantity and product specifications. For general bulk orders, the delivery cycle is 7-15 working days; for customized products with special specifications, the delivery cycle will be properly adjusted, and we will try our best to meet your delivery requirements.
Looking for high-quality, cost-effective titanium lined flange? Contact us now for a free quote and professional technical advice! We are committed to providing you with the best industrial connection solutions.
