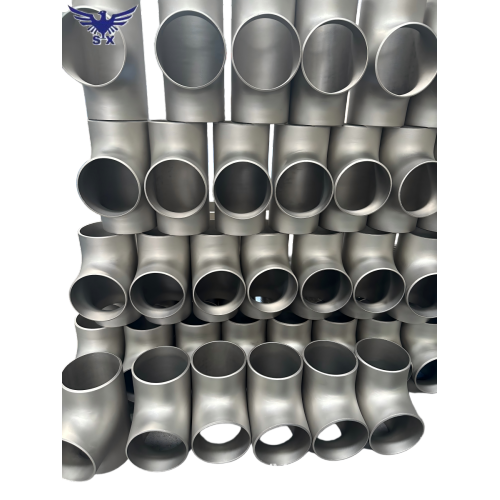

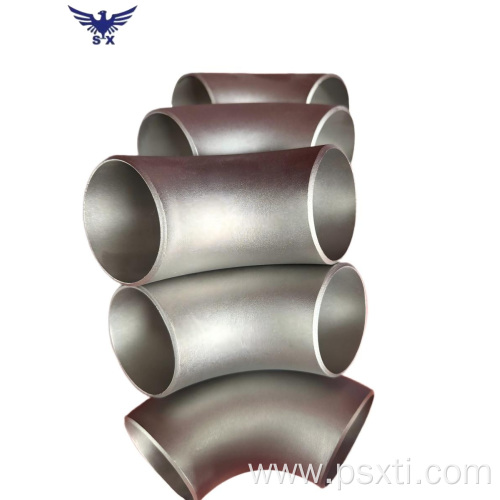

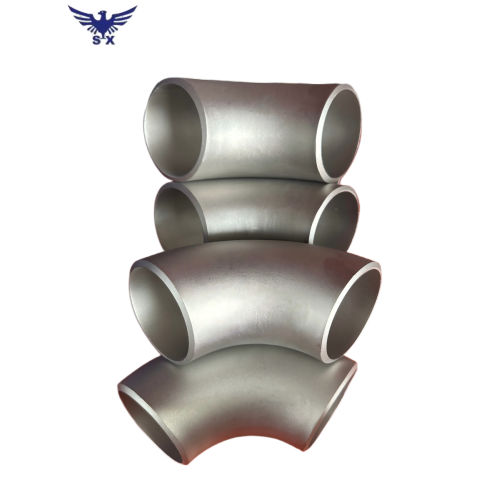

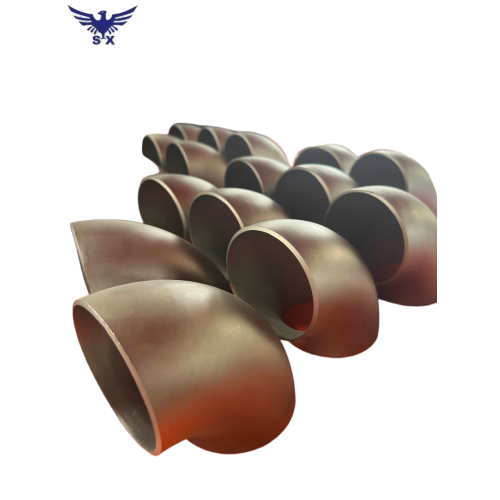

Precision Long Radius Titanium Elbow

Core Advantages

1. Ultra-high-precision dimensional control ensures excellent installation fit

The outer diameter, ovality, bend angle, end face perpendicularity, bevel angle, and bevel root thickness of the elbows are all subject to high-precision tolerance control. The pipe ends can be seamlessly butt-welded to seamless titanium pipes of the same specification, ensuring uniform joint gaps. This reduces on-site welding and commissioning time, eliminates common piping issues such as weld misalignment and leaks at the source, and significantly improves the overall construction quality of the piping system.

2. Exceptional Corrosion Resistance and Extended Service Life

Titanium possesses an extremely strong self-healing ability for its passivation film, enabling the inner walls of the elbows to withstand erosion from highly corrosive media such as chloride ions, seawater, moist chlorine gas, strong acids, strong alkalis, and salt solutions. Compared to 316L stainless steel and duplex steel pipe fittings, it is less prone to pitting and crevice corrosion under high-salt and highly acidic or alkaline conditions, significantly reducing future pipeline maintenance and replacement costs. It is ideal for corrosion-resistant pipelines designed for long-term, uninterrupted operation.

3. Low Fluid Resistance and Minimal Conveyance Losses

The gentle 1.5D long-radius bend minimizes vortices and pressure loss as the fluid passes through the elbow, reducing energy consumption in the pipeline and pump systems. It is highly suitable for the transportation of high-flow-rate liquids and gases, and is particularly well-suited for recirculating piping systems. The seamless, hot-pushed-formed interior features a smooth surface free of wrinkles or pits, making it difficult for media to deposit or form scale, thereby reducing the risk of pipeline blockages.

4. High Strength, Lightweight, and Resistance to High-Pressure Impact

Titanium offers excellent tensile strength and toughness, ensuring structural stability under high-pressure and high-temperature conditions. With a density of only 60% that of steel, the entire piping system has a lower weight, reducing the load on equipment supports, ship hulls, and offshore platforms. Gr5 titanium alloy elbows can also withstand higher pressures, making them suitable for aerospace and high-pressure chemical pipelines.

5. Impurity Free and Clean, Suitable for Transporting High Purity Media

The entire production process of these elbows is free from carbon steel contamination. After acid washing and passivation, the inner walls are highly clean and will not leach metal ions into the transported medium, making them fully suitable for projects with stringent purity requirements, such as pharmaceuticals, lithium-ion battery electrolytes, and high-purity chemical raw materials.

6. Flexible Customization Direct from the Manufacturer, One-Stop Supply

With over 18 years of experience in manufacturing Titanium Pipe fittings, we maintain a stock of standard specifications. Non-standard diameters, special wall thicknesses, heavy-duty high-pressure models, and special bend radii can all be custom-made according to your drawings. We can deliver complete sets of titanium pipe fittings—including titanium tees, titanium flanges, titanium reducers, titanium pipe caps, and Titanium Flange—simultaneously, eliminating the hassle of coordinating with multiple suppliers.

Application

1. Chemical and Metallurgical Industries

Pipelines for transporting corrosive fluids in hydrochloric acid, sulfuric acid, chlor-alkali, electroplating, and non-ferrous metal smelting applications; external circulation piping for reaction vessels.

2. Offshore Engineering & Seawater Desalination

Seawater transport pipelines, seawater cooling systems, coastal desulfurization and denitrification projects, corrosion-resistant piping for offshore drilling platforms, and marine piping fittings.

3. New Energy Lithium-Ion Battery Industry

Circulation piping for acid and alkali solutions in lithium-ion battery production; electrolyte transfer lines; corrosion-resistant piping for wet acid production.

4. Petroleum and Oil & Gas Industry

Pipelines for oil and gas wells with high chlorine content and high corrosion levels; oilfield wastewater return pipelines.

5. Environmental Protection: Exhaust Gas and Wastewater Treatment

Corrosion-resistant piping for industrial wastewater treatment; circulation piping for exhaust gas scrubbing towers.

6. Aerospace & High-End Equipment

Lightweight aerospace hydraulic piping; corrosion-resistant piping for precision testing equipment.

7. Food and Pharmaceutical Industries

Clean piping for the transport of corrosive pharmaceutical solutions and high-salt food processing media.
