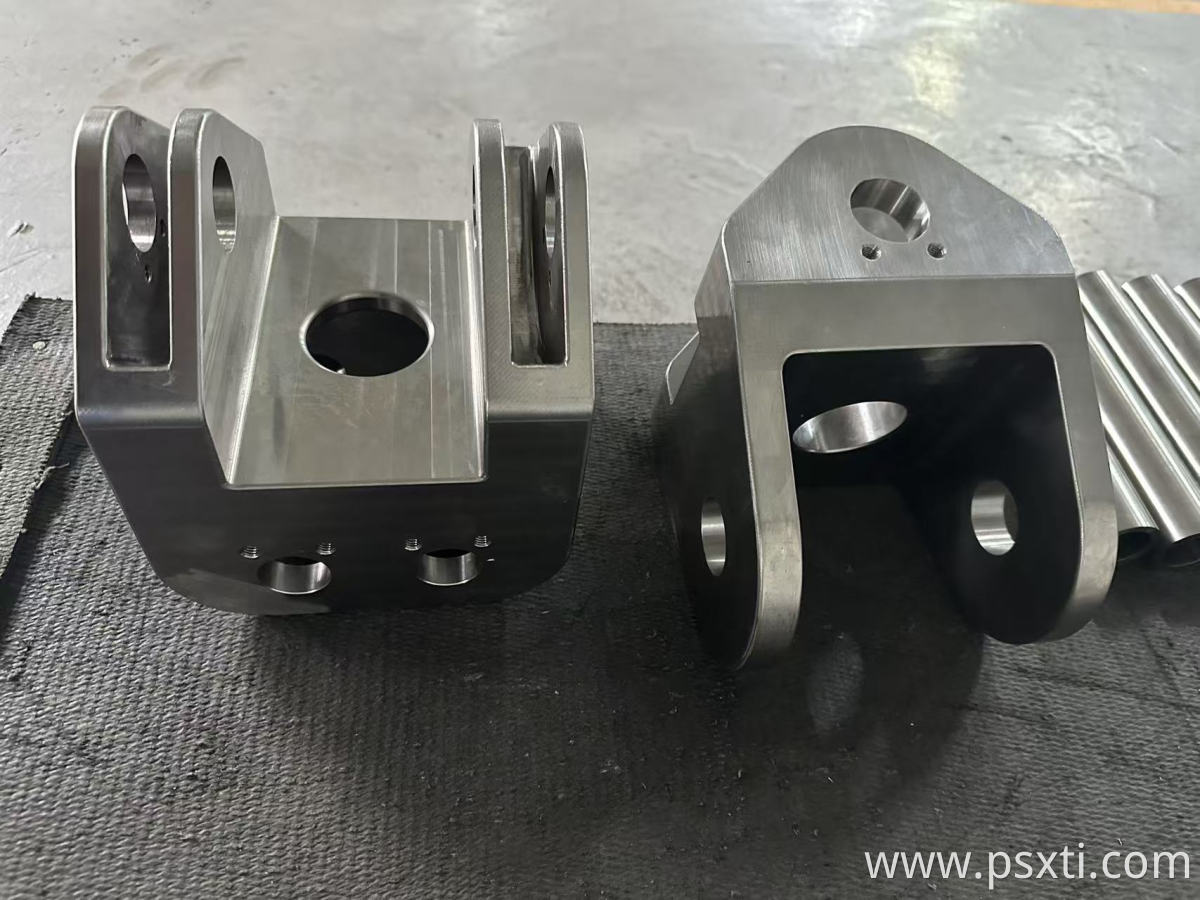

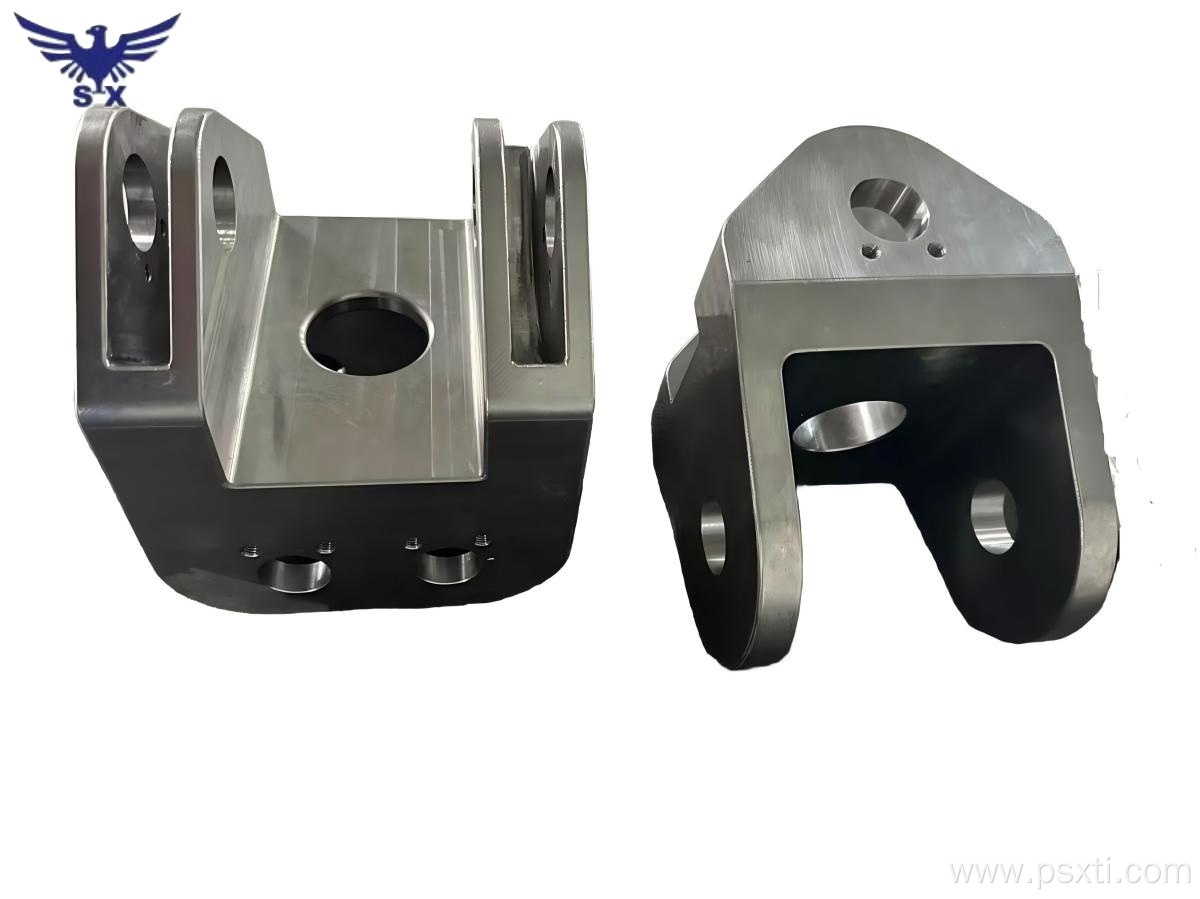

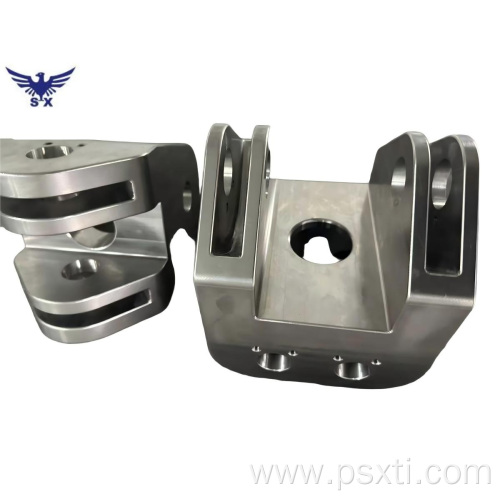

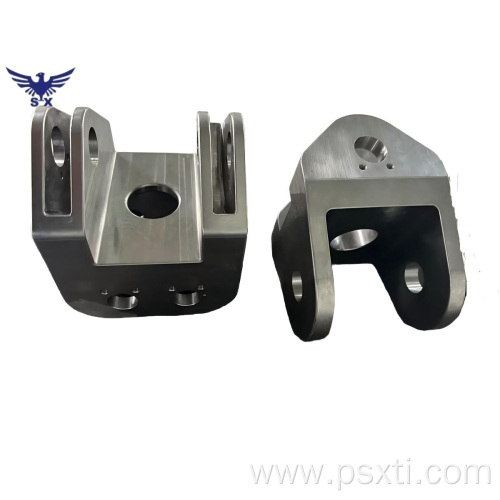

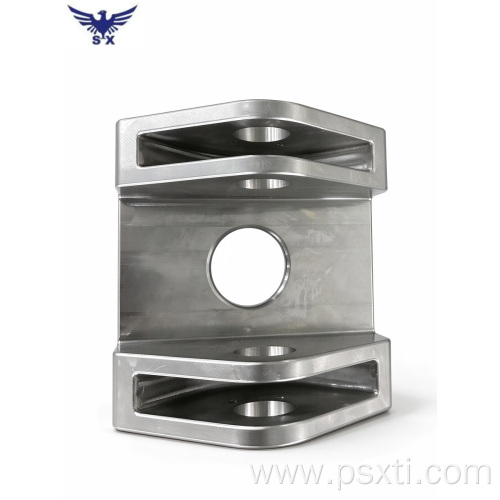

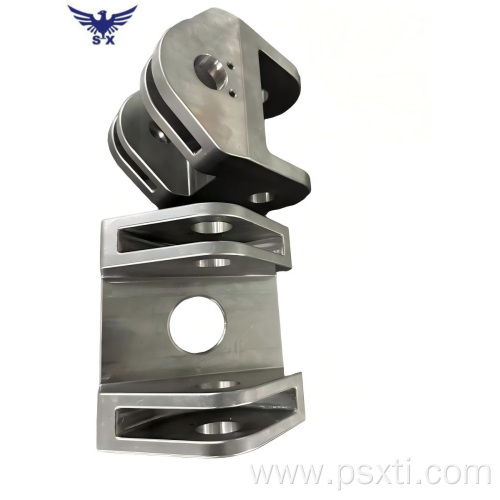

Titanium Alloy CNC Machined Bracket

Get Latest Price

Contact Now

Brand: PSX

Description

Product Description

What Is Titanium Alloy CNC Machined Bracket？

The Titanium Alloy CNC Machined Bracket is a custom designed load bearing connection component engineered specifically for high end precision equipment and demanding operating conditions. The product is manufactured from high-quality Titanium Alloy Forgings or thick plates and is machined as a single, integral piece using three-axis and five axis CNC precision milling processes, eliminating the need for welded joints and resulting in a dense, robust structure. It allows for the precise machining of complex features such as hinged tabs, mounting holes, positioning slots, and mounting steps, ensuring high dimensional accuracy and excellent assembly fit.

Leveraging the core properties of titanium alloy high specific strength, lightweight, resistance to seawater corrosion, fatigue resistance, and high temperature resistance these brackets serve as an ideal replacement for traditional steel and stainless steel brackets. They effectively reduce the equipment’s weight while extending its service life in corrosive, high pressure, and heavy load environments. Widely applicable in fields such as aerospace, marine engineering, deep sea oil and gas, and specialized intelligent equipment, they support full size, full structure custom manufacturing.

This titanium alloy bracket is manufactured using a monolithic machining process from a solid block of Titanium Material, setting it apart from welded or assembled brackets. It features a uniform internal metal structure free of weld defects and offers exceptional resistance to shear and deformation. The product features standard mounting holes and positioning grooves, with precision chamfering and deburring at the edges and corners. The surface is finely machined to reveal the natural titanium finish, with a uniform and consistent texture. Surface treatments such as sandblasting, polishing, and passivation can be customized according to customer requirements. With strict control over dimensional tolerances, it meets the assembly requirements of precision equipment and serves as a core precision component for heavy duty articulation, fixed support, and equipment connections.

Core Advantages

Integral CNC Milling: High Strength, No Deformation

Utilizing a deep processing technique for solid titanium billets, the entire manufacturing process is free of welding and splicing, thereby eliminating issues such as weld cracking and stress-induced deformation. The structure offers exceptional stability, capable of withstanding heavy and alternating loads over the long term, with outstanding fatigue resistance—meeting the requirements for long-term, stable operation of high-end equipment.

Lightweight and High Strength, Significantly Reducing Load and Improving Efficiency

Titanium alloys are far stronger than stainless steel, yet weigh only about 60% as much as steel. While maintaining the same structural support and load-bearing strength, they drastically reduce the overall weight of the equipment, thereby enhancing the operational performance and endurance of aviation and underwater mobile equipment.

Superior Corrosion Resistance, Suitable for Harsh Operating Conditions

A full range of titanium material—including TC4, TA2, and TA10—is available. These materials resist corrosion from seawater, chloride ions, acidic and alkaline media, and humid salt spray environments. They withstand deep sea, underground, and chemical corrosion environments without rusting, oxidizing, or deteriorating over long-term use, eliminating the need for frequent replacement and maintenance.

Precision Forming for Complex Customization

We support complex non standard designs such as irregular shapes, multiple mounting holes, angled slots, curved surfaces, and eccentric structures. Our five-axis machining equipment ensures high precision and controllable assembly clearances, perfectly meeting the installation, articulation, and positioning requirements of various precision equipment.

Complete Certifications, Traceable Quality

Manufactured in strict compliance with industry standards ASTM B348 and ASTM B381. We provide a full set of quality inspection documentation, including material spectrum reports, mechanical property tests, ultrasonic testing (UT), and dimensional accuracy inspections, and support third-party acceptance inspections.

Applications

Aerospace: Mounting brackets for airborne equipment, articulated support components for aircraft, structural components for aerospace tooling

Offshore Engineering: Underwater robot mounts, subsea equipment mounting bases, load-bearing connectors for seawater environments

Oil and Gas Equipment: Specialized downhole support components, wellhead equipment mounting brackets, corrosion-resistant connection bases

Specialized Industrial Equipment: Articulated mounting brackets for automation equipment, hydraulic machinery, and precision instruments

Chemical Processing Equipment: Support structures and fixed connection components for equipment operating in corrosive environments
