    Product Description

    What is ASTM B348 Titanium Bar

    ASTM B348 is a standard developed by ASTM International that specifies requirements for titanium rods and Titanium Alloy bars and billets. The standard covers six grades of Titanium Material and titanium alloy, designated by their corresponding grade numbers.
    It covers the chemical composition, mechanical properties and heat treatment requirements for each grade of titanium, as well as the test methods required to determine compliance with the standard.
    It also covers product dimensional and shape tolerances, acceptable surface finishes, and packaging and labeling requirements.
    It is primarily used in aerospace, medical and industrial applications where high strength, light weight and corrosion resistance are required.

    Chemical composition

    Element Composition %
    Gr1 Gr2 Gr3 Gr4 Gr5 Gr9 Gr23
    N,max 0.03 0.03 0.05 0.05 0.05 0.03 0.03
    C,max 0.08 0.08 0.08 0.08 0.08 0.08 0.08
    H,max 0.015 0.015 0.015 0.015 0.015 0.015 0.0125
    Fe,max 0.2 0.2 0.3 0.5 0.4 0.25 0.25
    O,max 0.18 0.18 0.35 0.4 0.2 0.15 0.13
    AI -- -- -- -- 5.5-6.75 2.5-3.5 5.5-6.5
    V -- -- -- -- 3.5-4.5 2.0-3.0 3.5-4.5
    Sn -- -- -- -- -- -- --
    Pa -- -- -- -- -- -- --
    Residual element single,max 0.1 0.1 0.1 0.1 0.1 0.1 0.1
    Total residual elements,max 0.4 0.4 0.4 0.4 0.4 0.4 0.4
    Ti Residual Residual Residual Residual Residual Residual Residual

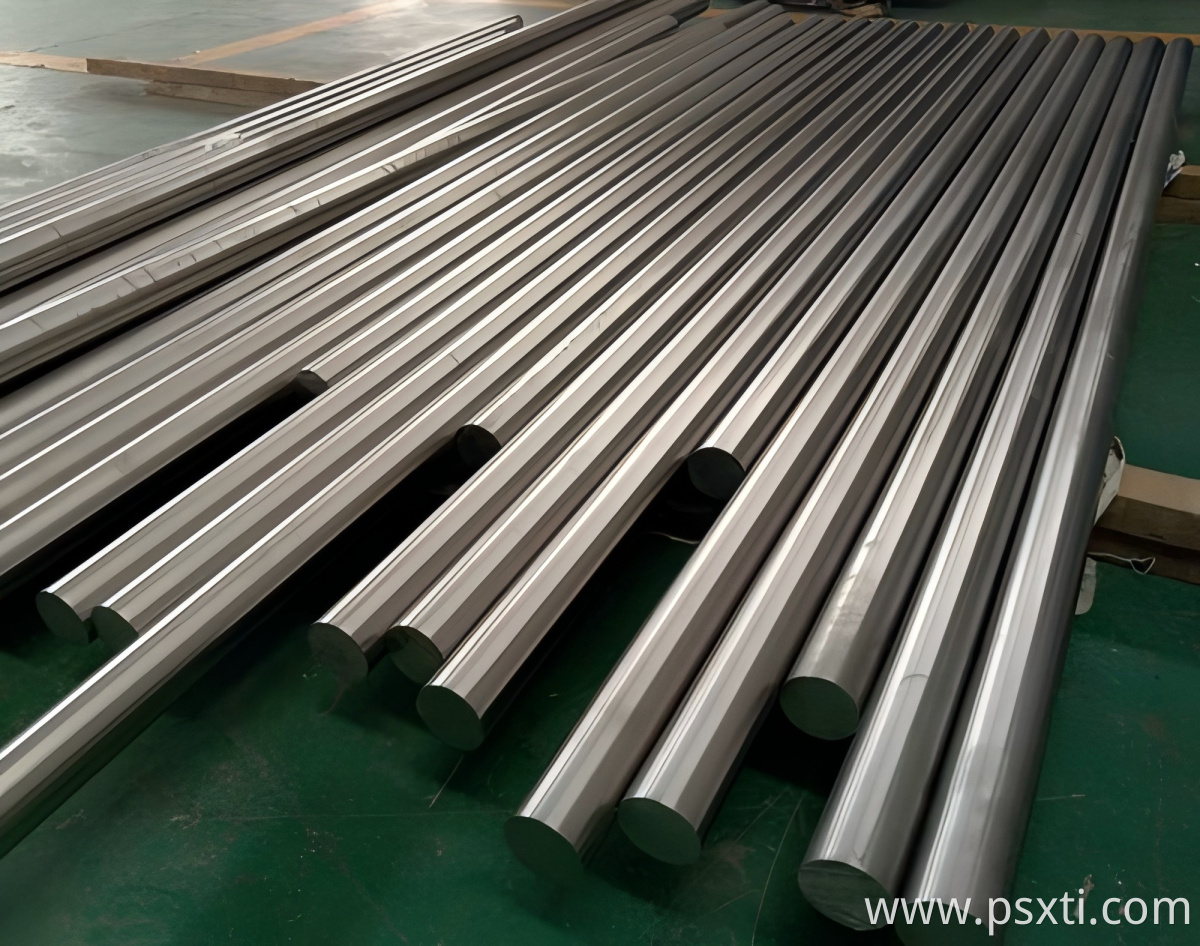

    astm b348 grade 5
