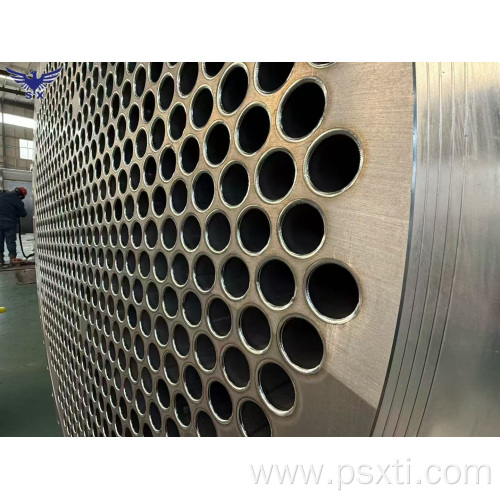

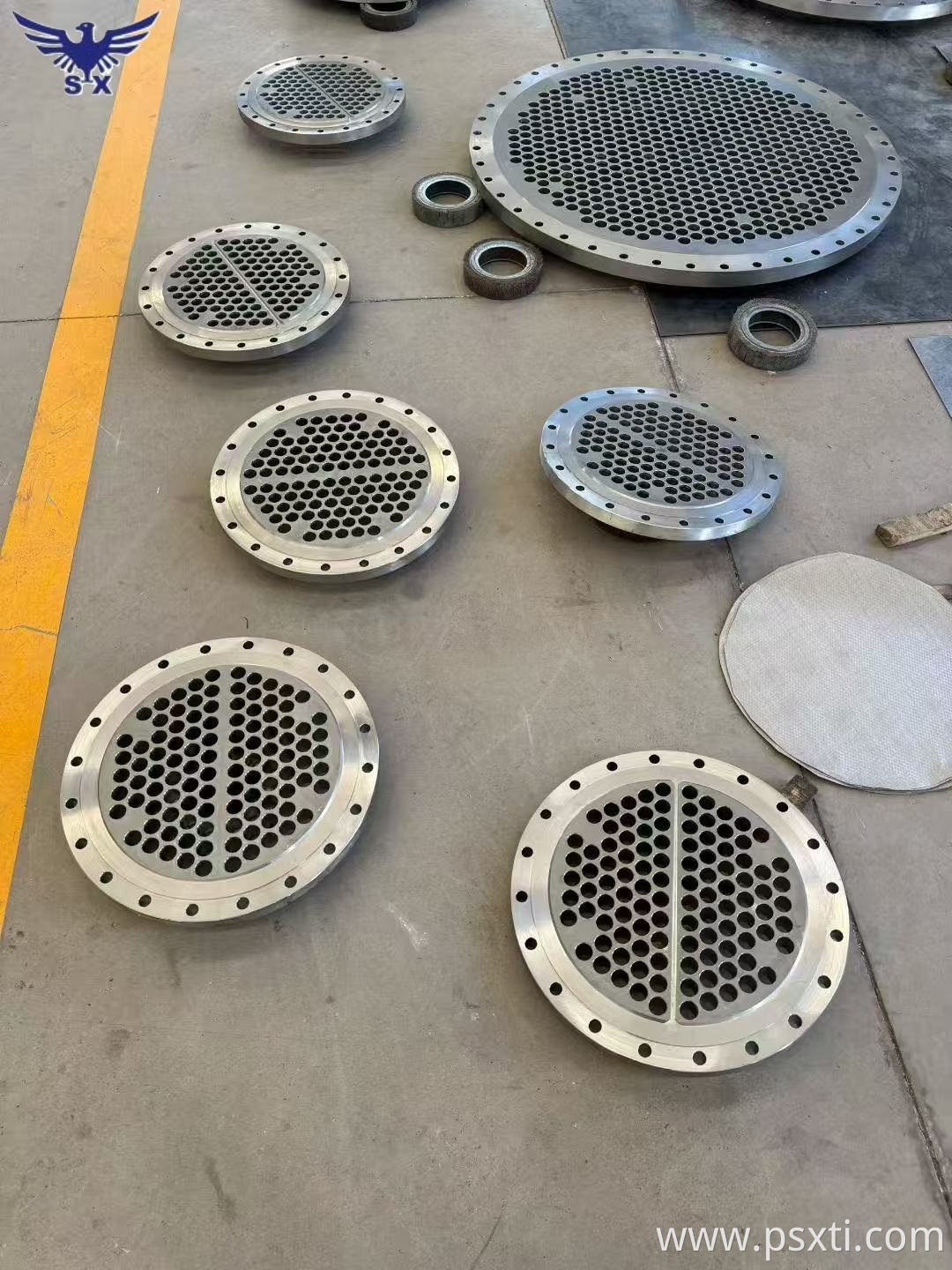

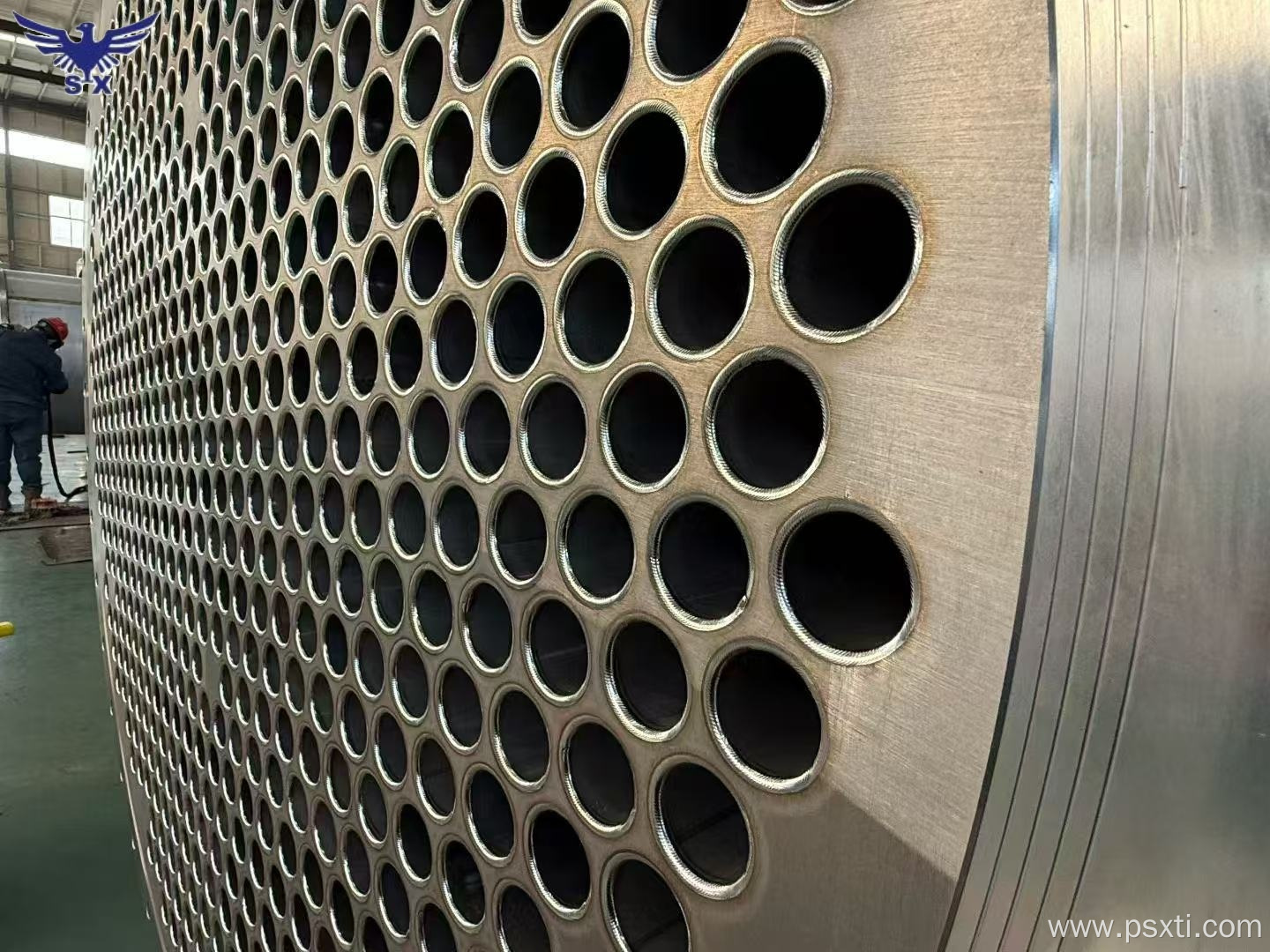

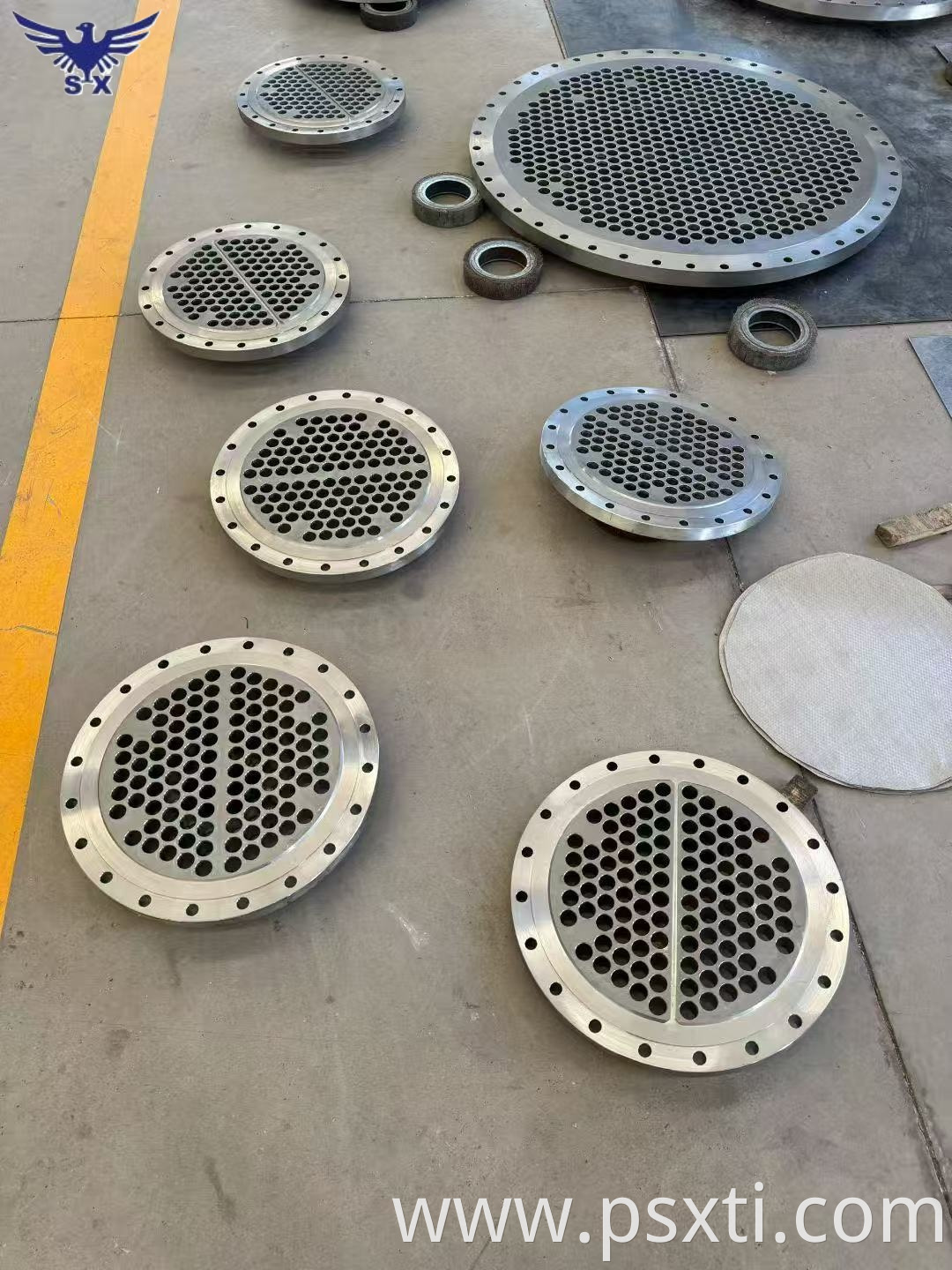

High Performance Titanium Steel Composite Tube Sheet

High Performance Titanium Steel Composite Tube Sheet

Get Latest Price

Contact Now

Brand: PSX

Place Of Origin: China

Titanium Material Grade: Gr1, Gr2, Gr7, Gr9 (customizable)

Titanium Sheet Thickness: 3-20mm

Titanium Tube Matching Range: Φ10-Φ50mm (OD)

Composite Process: Explosive bonding / Rolling bonding

Operating Temperature: -253℃ ~ 350℃

Operating Pressure: ≤42MPa

Packaging: Anti-rust oil + wooden case (seaworthy packaging)

Description

Product Description

Our Titanium Steel Composite Tube Sheet is a premium industrial component engineered by PSX, integrating the superior corrosion resistance of Titanium Material with the high structural strength of carbon steel. This composite tube sheet is the core component for heat exchangers, condensers and reactors, perfectly matching with Titanium Tube and Titanium Sheet to form a complete titanium-based industrial system, ensuring long-term stable operation in harsh working environments.

Core Competitive Advantages

1.Dual-Material Advantage

The surface layer adopts high-purity Titanium Sheet (Gr1/Gr2/Gr7 optional) with excellent anti-corrosion performance, while the base layer uses high-strength carbon steel to ensure mechanical stability. The composite process meets international standards, avoiding delamination and cracking during use.

2.Precision Matching with Titanium Tube

The tube holes of the composite tube sheet are processed with micron-level precision, which can be seamlessly connected with Titanium Tube of various specifications (Φ10-Φ50mm). It effectively prevents medium leakage and improves the sealing performance of the whole equipment.

3.High-Quality Titanium Material Base

All titanium components are made of aerospace-grade Titanium Material, with low density (only 4.51g/cm³), high specific strength, and resistance to seawater, acid and alkali media corrosion, far exceeding traditional stainless steel materials.

4.Customizable Specifications

We support customized processing of tube sheet diameter (DN100-DN3000mm), thickness (20-200mm), tube hole quantity and layout, to adapt to different industrial scenarios such as chemical engineering, marine engineering and nuclear power.

Application Scenarios

Chemical industry: Corrosive medium heat exchangers (matching with Titanium Tube and Titanium Sheet)
Marine engineering: Seawater desalination equipment tube sheets
Nuclear power: Nuclear reactor cooling system components
Petrochemical: Acid and alkali transportation pipeline fittings

Quality Assurance

All Titanium Material raw materials pass ASTM/GB standard testing, with complete material certificates
The composite interface bonding rate is ≥99.5%, tested by ultrasonic flaw detection
Provide 5-year quality warranty and lifelong technical support
Can customize non-destructive testing reports (UT/RT/PT) according to customer requirements
