Key Advantages
1. Exceptional Corrosion Resistance: Lifetime Rust-Free and Resistant to Aggressive Media
The surface of titanium features a naturally formed, stable, and dense oxide passivation layer, providing exceptional corrosion resistance. It can withstand long-term exposure to seawater, chloride ions, salt spray, hypochlorites, dilute sulfuric acid, alkaline solutions, electrolytes, and mixed chemical corrosive media without developing pitting corrosion, crevice corrosion, rust, or flaking. This completely resolves the pain points associated with stainless steel flanges such as short term corrosion, leakage, aging, and failure in seawater and chemical electrolyte environments—significantly reducing equipment maintenance costs and the risk of downtime.
2. High Strength and Lightweight, with a Specific Strength Far Exceeding That of Stainless Steel
GR5 titanium alloy possesses extremely high tensile and yield strengths, stable mechanical properties, and excellent resistance to impact, fatigue, and cyclic loading. At equivalent strength levels, titanium flanges weigh approximately 40% less than stainless steel flanges, effectively reducing the overall load on pipelines. They are particularly suitable for engineering applications with strict self-weight requirements, such as offshore platforms, ships, aviation, and high-altitude equipment. Under long-term high-pressure pulsating conditions, they are resistant to deformation and cracking, offering an extremely high safety margin.

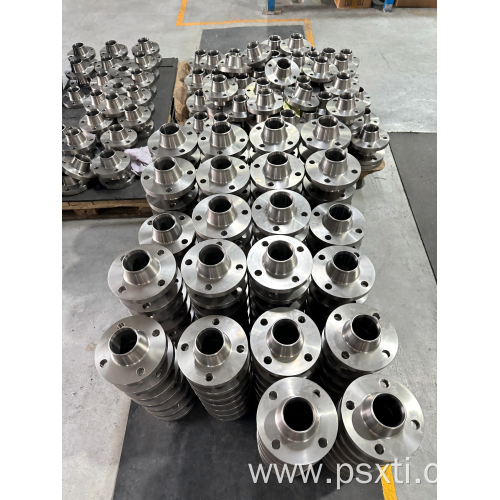

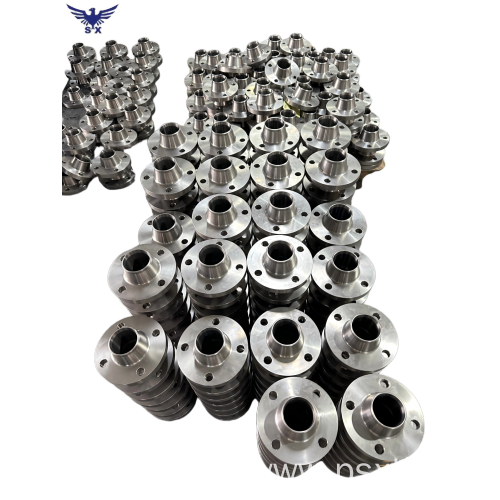

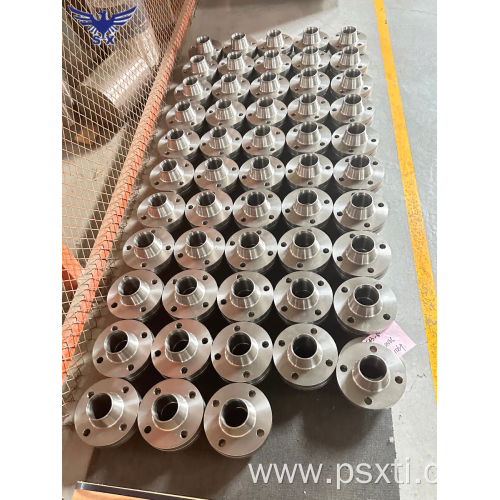

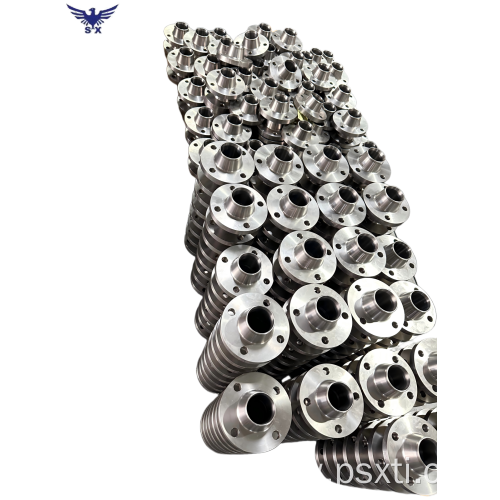

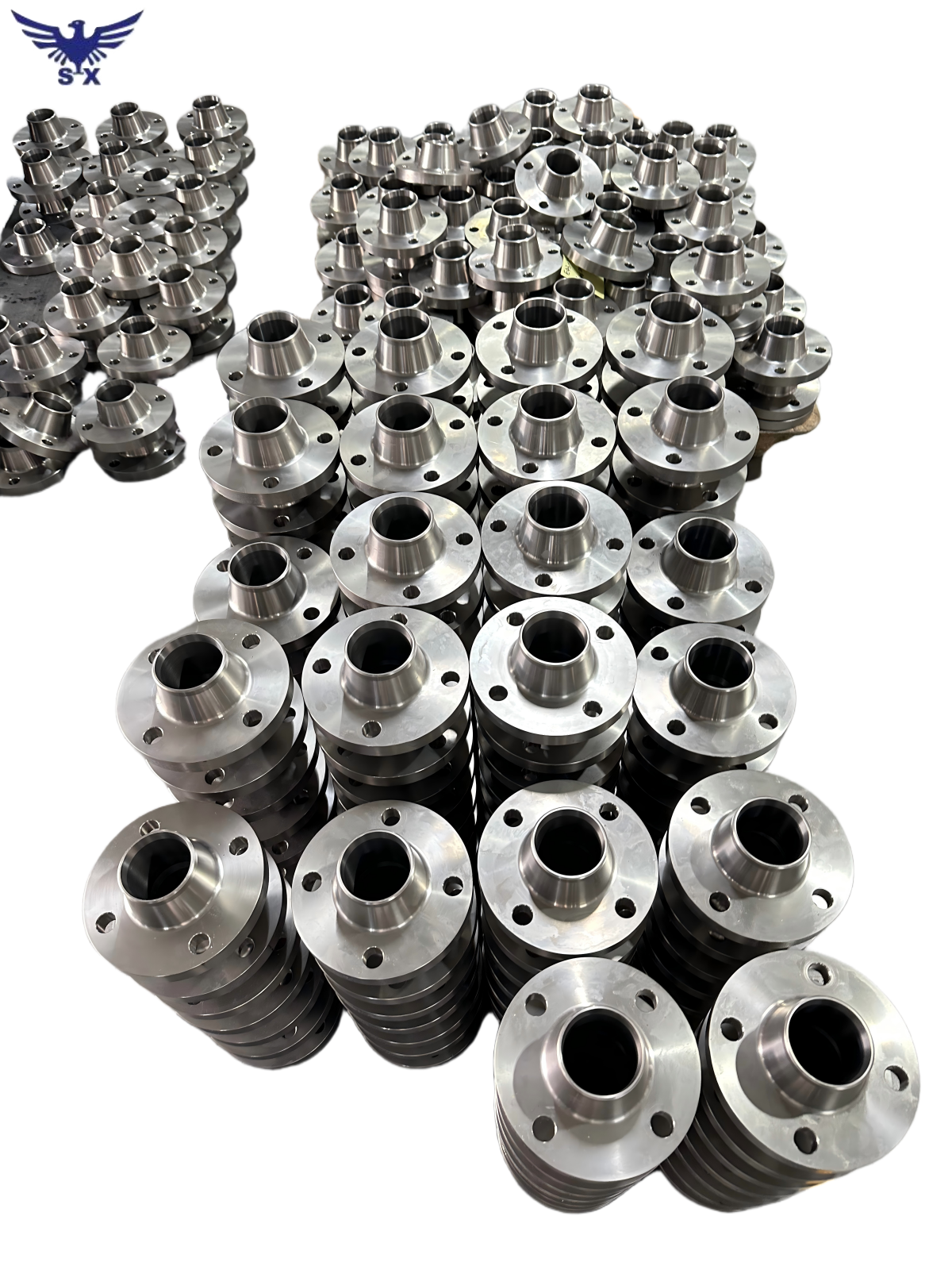

3. Tapered Long Neck Transition Structure Eliminates Pipeline Stress Concentration Risks
The unique smooth, tapered neck design of the necked butt-weld flange allows pipeline pressure, thermal stress, and vibration loads to be smoothly transitioned and dispersed, preventing stress accumulation at the weld seam. When subjected to alternating hot and cold cycles, frequent start-stop operations, high-pressure shocks, and pipeline vibrations, this design effectively prevents common failures such as weld fatigue cracking, flange deformation, and seal failure, making it the optimal structure for dynamic and high-temperature, high-pressure operating conditions.
4. Full-Penetration Butt Welding: Integrated Piping System with Zero Leakage
Unlike the plug-welded fillet joints found in flat-welded flanges, titanium butt-welded flanges utilize a full-penetration butt-welding process. After welding, the flange and pipeline share identical mechanical properties, resulting in an integrated piping structure that is highly rigid and capable of withstanding high pressures. This design is suitable for the transportation of flammable, explosive, toxic, and high-risk process media, eliminating the risk of seepage, pressure loss, and safety hazards.
5. Precision CNC Machining: Accurate Dimensions, Tight Seals, and Seamless Installation
The entire product line is precision-machined using high-precision CNC lathes. The flatness of the sealing surfaces, bolt hole spacing, inner diameter tolerances, neck height, and thickness strictly comply with ANSI and GB standards. The flange end faces are smooth and burr-free, with uniform sealing bands. When paired with gaskets, they ensure a high degree of fit, allowing for easy alignment during installation and achieving long-term, stable sealing that eliminates leaks, spills, and drips.
6. Pure and Stable Materials; Complete Material Reports Available

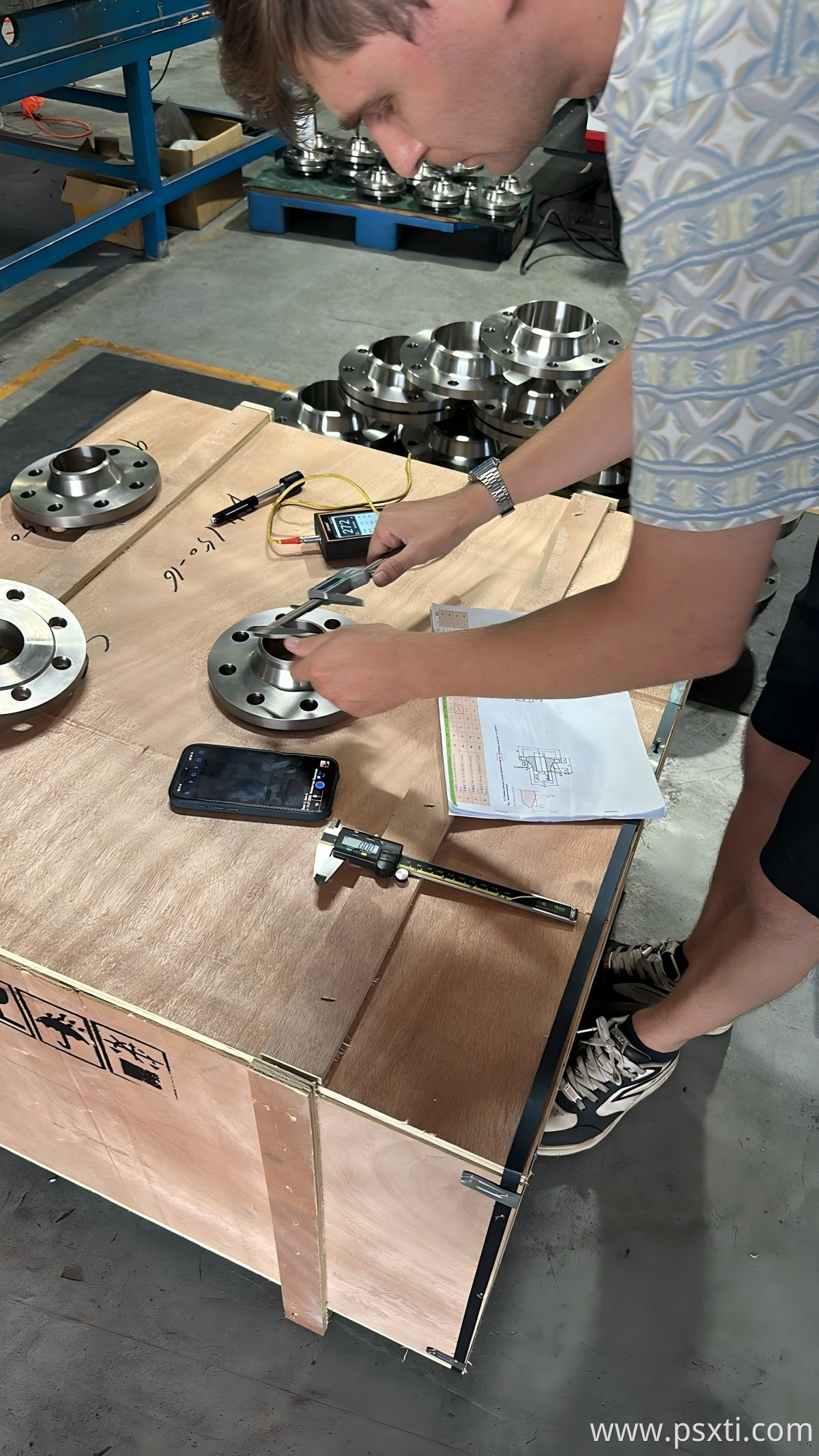

Raw materials consist exclusively of titanium forgings from reputable major manufacturers, free of impurities, porosity, delamination, and cracks. For each production batch, we provide chemical composition reports, mechanical property reports, and ultrasonic testing reports (MTR material certificates). We support third-party re-inspection and meet the stringent audit standards for engineering acceptance, export projects, and special equipment.
7. Comprehensive range of specifications; custom non-standard designs available
We maintain a full inventory of ASME B16.5/B16.47 specifications and support various pressure ratings and sealing face configurations. We can customize non-standard titanium flanges, special-shaped titanium flanges, and thickened high-pressure titanium flanges according to customer drawings, dimensions, and specific process requirements.
Applications:
Marine and Offshore Engineering: Offshore platform pipelines, ship piping, seawater intake and discharge systems, equipment exposed to marine salt fog corrosion environments
Seawater Desalination Industry: Reverse osmosis desalination equipment, brine transport pipelines, seawater recirculation systems
Fine Chemicals and Acid-Alkali Industries: Acid washing, alkali washing, reactor connections, pipelines for transporting corrosive media
New Energy Electrolysis Industry: Electrolytic hydrogen production, new materials for lithium-ion batteries, chlor-alkali chemicals, and electrolyte piping for hydrometallurgy
Oil and Gas Extraction Industry: Oilfield water injection, corrosive oil and gas media, and high-pressure process manifold systems
High-End Aerospace Equipment: Airborne fluid piping, high-pressure hydraulic systems, and test equipment piping
Environmental Wastewater Treatment: High-salinity wastewater, chemical waste liquids, and equipment for transporting highly corrosive sewage
